Review before committing.
Drawing revision, critical features, finish, quantity and inspection requirements belong in the same conversation.
DRAWING-LED MANUFACTURINGRAJKOT, INDIA CONNECTED SUPPLY
CNC machining / Industrial components
PRECISION PARTS.
BUILT AROUND
YOUR DRAWING.
CNC-machined components for industrial OEMs. From drawing review and trial parts to repeat batches and export coordination.
Explore the part in 3D INTERACTIVE SECTION VIEW

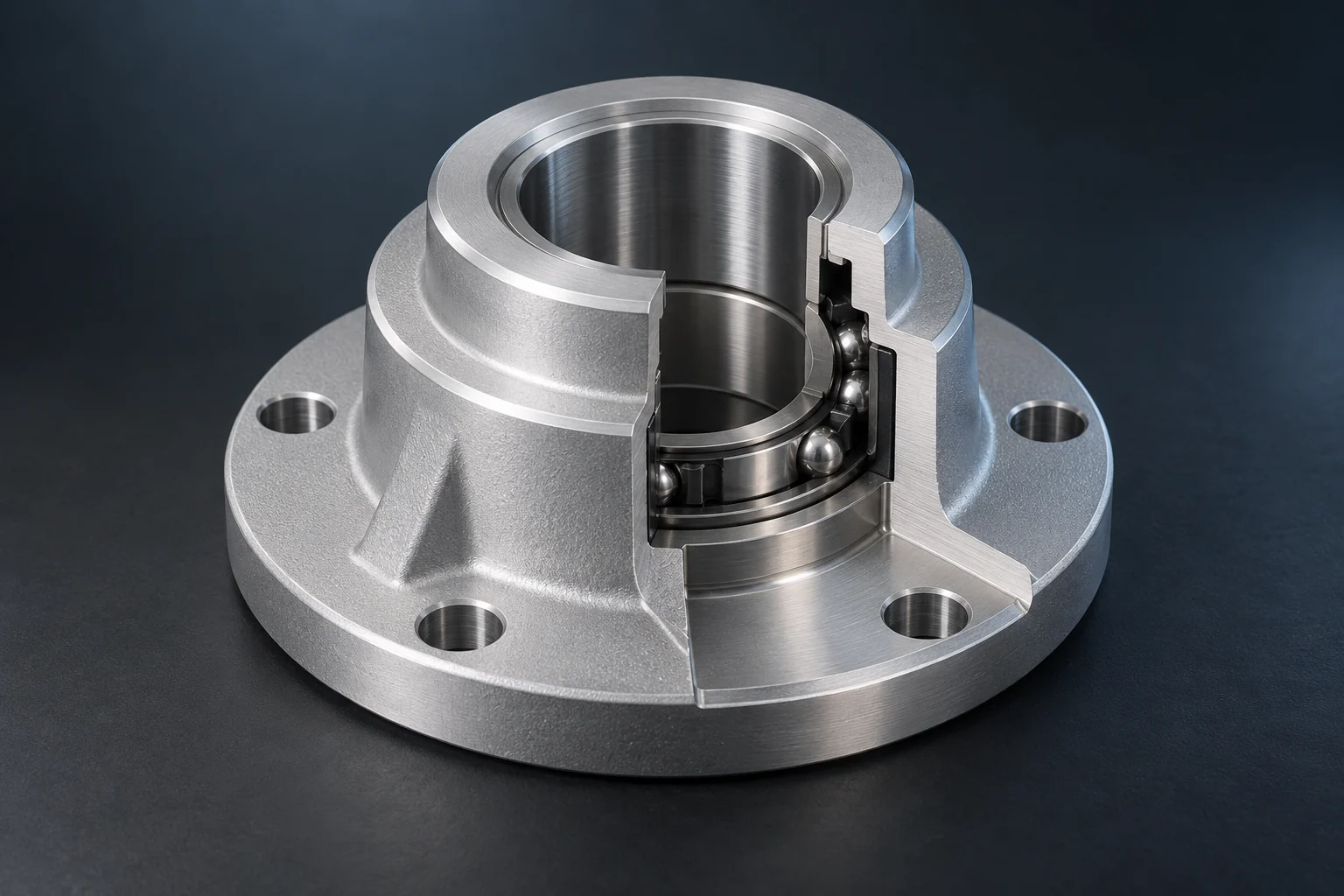

COMPONENT / 01BH–240Bearing housing
25%
Outer profileInternal detail
See what the drawing needs to define.
Open the housing to explore the bore, shoulders and mating surfaces.
Simplified component model. The approved drawing defines the manufactured part.
01 / DRAWING REVIEW02 / TRIAL & VALIDATION03 / REPEAT SUPPLY
One part. One accountable conversation.
Bring the drawing referenceTHE WORK BEHIND THE PART
FROM RAW STOCK
TO YOUR NEXT
PRODUCTION RUN.
Start with the geometry, material and intended use. Build a manufacturing plan around the details that matter.
See the manufacturing scope010203
CNC milling
Housings, pockets, mounting faces and multi-feature components.
GEOMETRY / DATUMS / TOOL ACCESSCNC turning
Shafts, sleeves, rings and concentric mating features.
DIAMETERS / FITS / THREADSFinishing & inspection
Agree surface requirements, protected areas and acceptance evidence.
FINISH / MEASUREMENT / RECORDSQUALITY STARTS WITH A DEFINED QUESTION
DON’T JUST CHECK THE PART.
CHECK WHAT MATTERS.
BH-240 / AP-BH240 REV C
Follow the measurement.
Choose a drawing feature. Watch the probe move to its inspection position.
Bore diameter
Ø40.00 ±0.02 mm
Example reading—
Drawing requirements define the feature and acceptance range.
Prewritten sample readings, not live metrology or an inspection report.

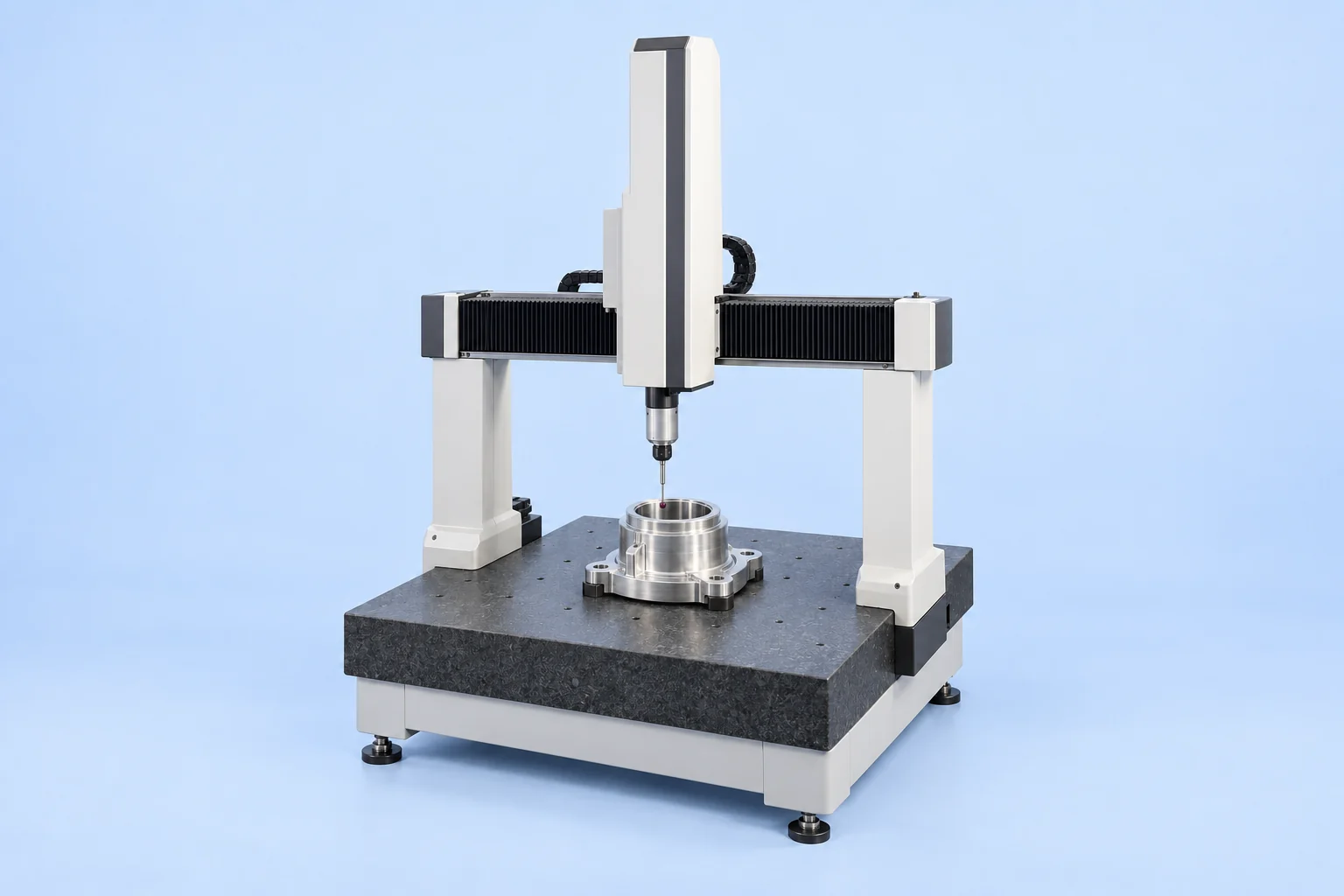

METROLOGY / SPATIAL WALKTHROUGH
Ruby probe Feature-led inspection
THE PART FILEBH–240 / REV C
A REQUEST YOUR TEAM CAN RECOGNISE
240 PARTS.
12 TRIAL PIECES.
ONE AGREED REVISION.
Alder Pump Systems needs a repeatable bearing-housing supply. Start by agreeing the drawing revision, trial requirements and evidence for repeat production.
- Drawing
- AP-BH240 / Revision C
- Material
- 6061-T6 aluminium
- Finish discussion
- Bead-blasted exterior. Protect the specified datum and bore surfaces.
- Release plan
- 12 trial pieces; 228 balance after agreed sample acceptance.
Illustrative customer brief. Dimensions, finish and acceptance are agreed for each drawing.
IDENTIFICATION THAT STAYS WITH THE PART
A BATCH REFERENCE.
A CLEARER TRAIL.
Connect the part identity to its drawing revision, material evidence and inspection record. Agree the marking location before manufacturing.

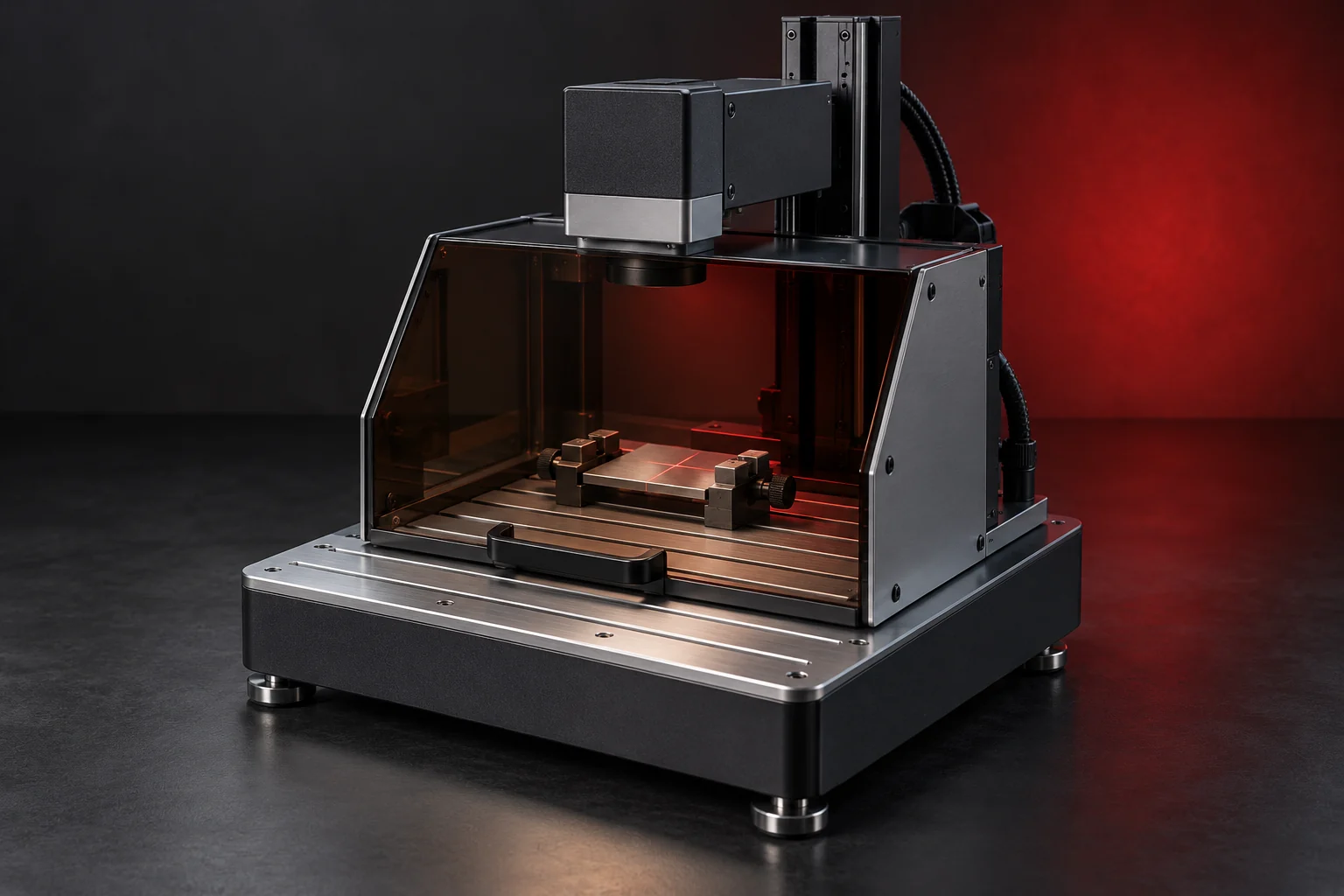

LASER MARKING / INTERACTIVE PREVIEW
A visual explanation of traceability. No machinery is connected.
SAMPLE IDENTIFICATION RECORD
- Part
- BH-240
- Drawing
- AP-BH240 Rev C
- Lot reference
- TV-2610-07
- Example serial
- Not marked yet
Run a marking preview to connect one example part to its batch reference.
Local examples marked0
Plan the evidence trail ENGINEERING IS A CONVERSATION
PEOPLE WHO ASK
THE RIGHT NEXT QUESTION.
Make exceptions visible.
A missing datum or unclear masking area needs an answer—not an assumption on the shop floor.
Keep responsibility clear.
Manufacturing, quality, procurement and dispatch each need a named next step.
PACKING
Protect the part, identify the batch and agree pack quantities.
DOCUMENTS
Define required records, responsible owners and review points.
HANDOVER
Confirm destination, logistics responsibilities and the dispatch decision.
BEFORE YOU SEND THE BRIEF
FEWER ASSUMPTIONS.
BETTER STARTING POINTS.
What should the first RFQ include?
A part and drawing reference, revision, material, quantity, intended use and critical requirements. Include finishing and inspection expectations. The RFQ planner helps structure this information.
Can we start with a trial batch?
Discuss the trial quantity, acceptance evidence and the decision needed before repeat production. Trial approval and production release remain separate agreed steps.
What tolerances can you hold?
Feasibility depends on material, geometry, setup and how the feature is measured. Highlight critical tolerances on the drawing for a specific review. The sample dimensions here are not a blanket capability promise.
How are export responsibilities agreed?
Start with destination, packing needs, document requirements and logistics contacts. Confirm shipment terms and responsibilities with the parties involved before a delivery commitment.
YOUR NEXT COMPONENT STARTS HERE
LET’S LOOK AT
THE DRAWING.
One component or a repeat supply programme. Start with the requirement you need to make real.
Build your RFQ brief PART / MATERIAL / QUANTITY / REVISION
